Automatic Plate Edge Beveling Machine Epb

Overview

Basic Info.

Model NO.	EPB-60R
Style	Desktop
Layout	Horizontal
Automatic Grade	Automatic
Power Source	Electric
Certification	ISO
Bevel Width	6-60mm
Bevel Angle	10-60 Degree
N.W	250 Kg
Worktable Height	700-830mm
Cutting Material	All Metal Plate
Feed Speed	0-1500 mm/Min
Function	Plate Bevel
Machine Type	Auotomatic
Transport Package	Wooden Box
Specification	225kg
Trademark	E-work
Origin	China
HS Code	8461909000
Production Capacity	5000 Sets Per Month

Product Description

Product Description

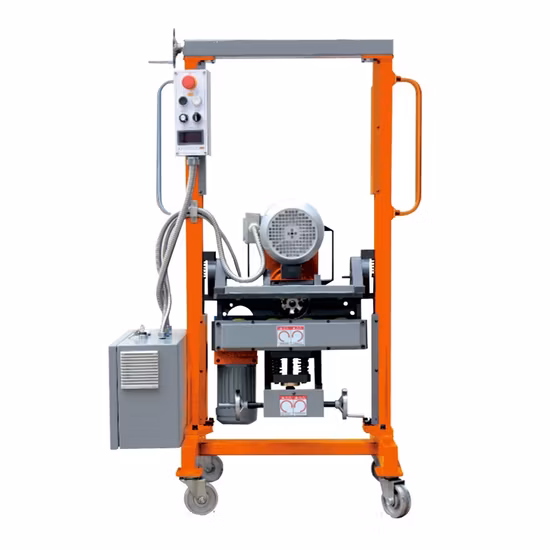

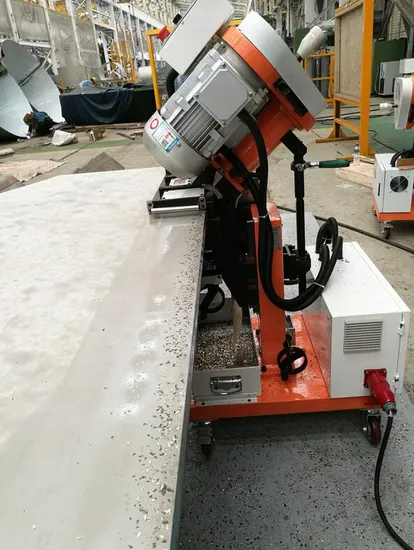

AUTOMATIC PLATE EDGE BEVELING MACHINE EPB-60R

Main Features:1.Cold processed, No sparks, Will not affect the material of plate.2.Machine can be turned up and down, without turning over plate.3.Automatic feed, Automatic Marching , High efficiency, One person can operate multiple devices at the same time.4.Smooth slope, Surface finish can be as high as Ra3.2- Ra6.3.5.Numerical control display screen, Simple operation, Bevel speed can be adjustable , High precision.6.Equipped with CNC blades , Low consumables.7.Bevel Type : V, Y, K, X etc.8.Can process carbon steel, stainless steel, alloy steel, titanium, and composite plates etc.Product Parameters

Model	EPB-60R
Voltage	AC 3PH 380V 50HZ
Total power	3400W
Spindle speed	1050r/min
Feed speed	0-1500mm/min
bevel width	1-55mm
single bevel width	1-15mm
bevel angle	10-60°
Clamp thickness	6-60mm
Plate width	>100mm
Plate length	>300mm
Worktable height	700-830mm
N.W	225KGS
Process material	CS,SS,Aluminum,bronze.compound plate

Note:Non-standard machines are aviable according to customer's requirement.Detailed Photos

Customers Feedback

FAQ

1. How to choose a suitable model?RE: Before select the model, we need to know more details about the pipe, such as the I.D, O.D, wall thickness, the material of the pipe and the environment of the site and the requirement of the end face. Then it will be more convent for all of us to make an immediate decision. Thanks!2. Do you have another choice about the driven?RE: Of course, we have widely variety of choices for you, such as the electric, pneumatic, hydraulic and NC.3. About the type of the beveling?RE: The normal type is the v and U, if you have any special requirement, please let us know it, I believe that our engineer can provide a solution for you.
